16 universal inputs I/O module

16 universal inputs I/O module
Daugiau

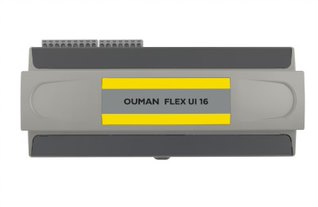

Flex UI 16 is a DIN-rail-attachable I/O device and can be connected RS-485 bus. It has 16 universal measurement inputs as well as both 24Vac and 15Vdc outputs.

16 universal inputs (can be configured):

• Passive sensors (inputs 1…16)


Measurement channel accuracy:

• NTC10 element: +/- 0,1 ºC between -50 ºC…+100 ºC, +/- 0,25 ºC between +100 ºC…+130 ºC
• Ni1000 element: +/- 1,0 ºC between -50 ºC…+130 ºc
• PT1000 element: +/- 1,0 ºC between -50 ºC…+130 ºC
• Active sensors (inputs 1…16) 0…10 V voltage message, meas. accuracy 1mV.
• Contact information (inputs 1…16)
• Contact voltage 5 Vdc Contact current 0,5 mA
• Contact resistance max. 1,9 kΩ (closed), min. 11 kΩ (open)
• Counter inputs (inputs 13…16) Minimum pulse length 30 ms
• Supply voltage 24 VAC/VDC (-10 % ... +20 %) , 50/60 Hz
•Protection class IP2
